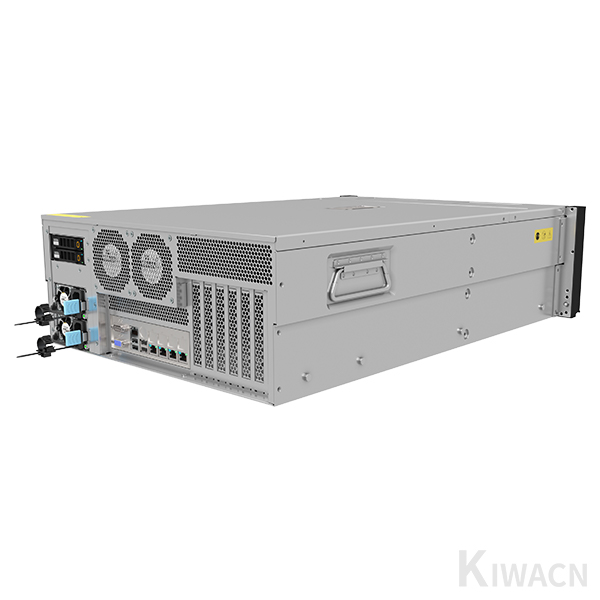

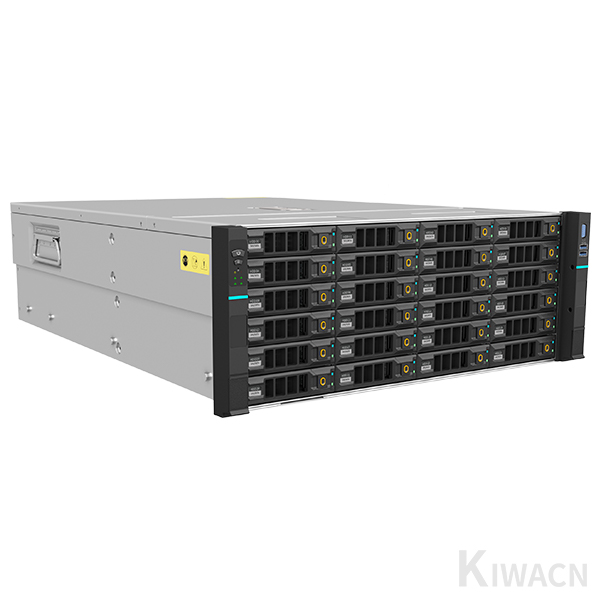

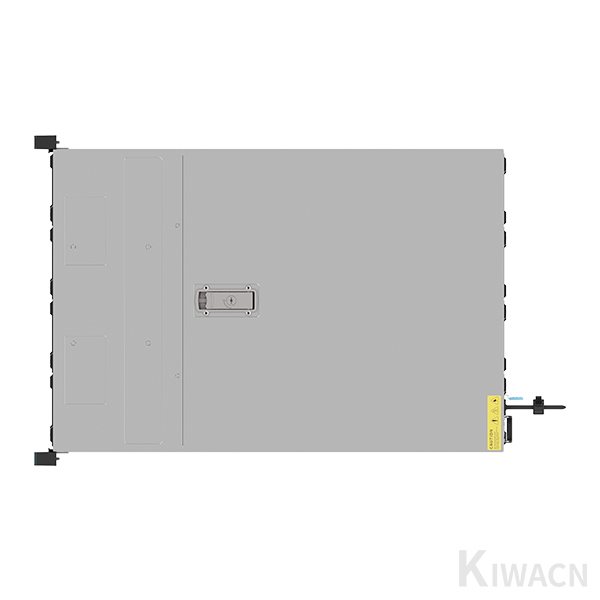

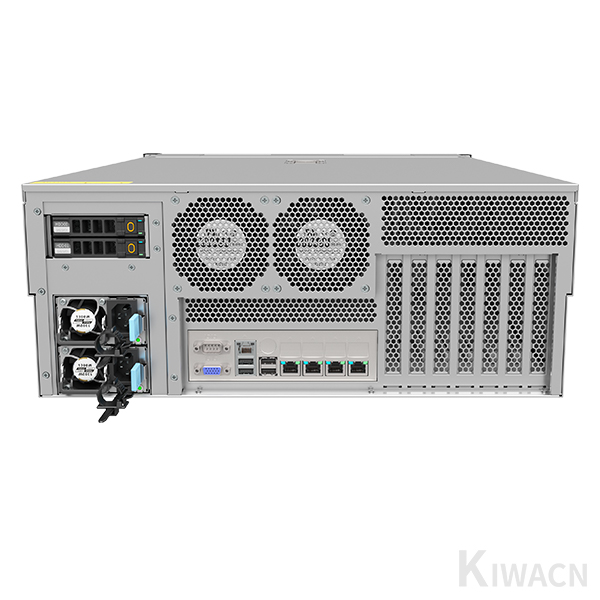

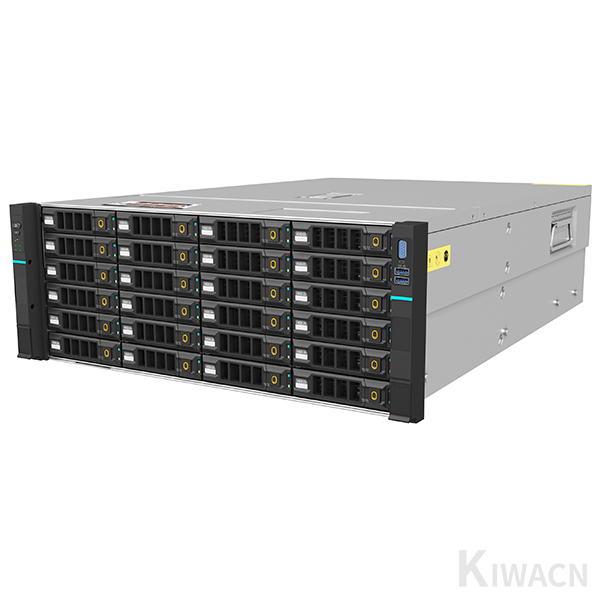

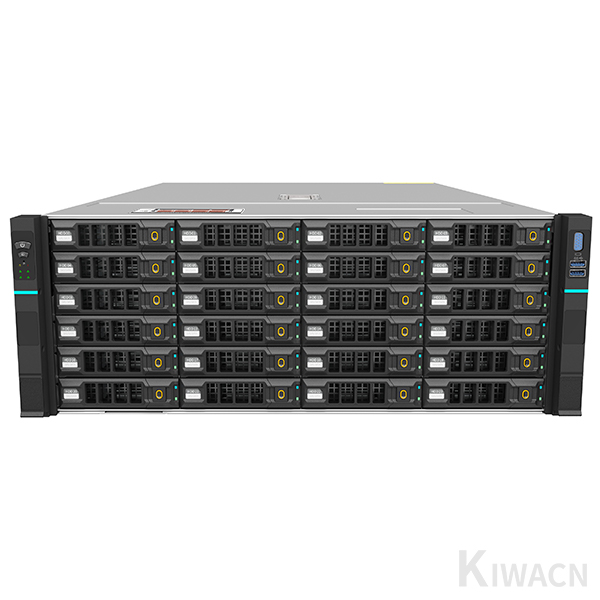

4U 24 Bays Server Chassis

4U rack-mount L-Shaped server chassis

24-port 12Gb/s-SAS,-Expanderbackplane

Motherboard supports (12”x13”) and the following specifications

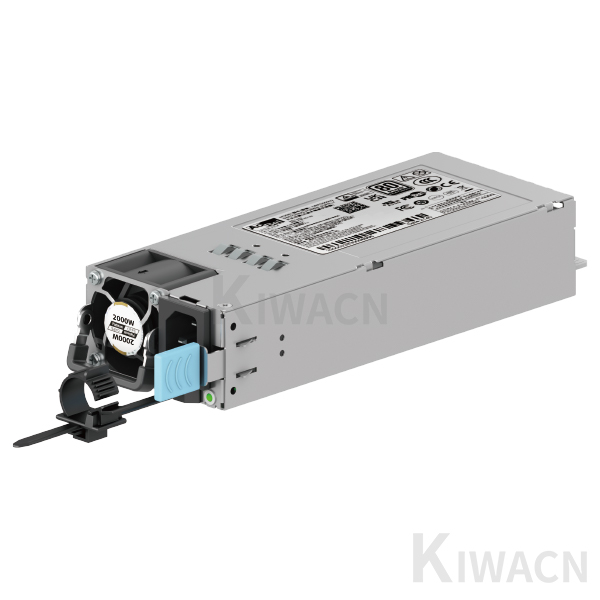

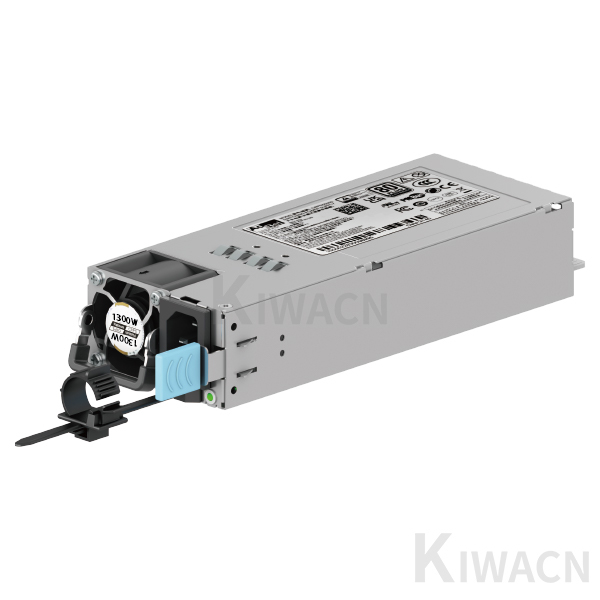

Power supply supports 2U standard power supply and 1+1 redundant power supply

Can be widely used in big data storage, Internet,

Cloud computing and other applications.

Customized Accepted

Technical Parameter Dimensional Structure Download

Product code	K24024
Chassis Category	4U Rack Mount
Material	1.2mm SGCC(taiwan)
MB Form Factor	Extended ATX (12”x 13”)
Dimensions(DWH)	660435177 (mm) 25.98” x 17.13 x 6.97”
Drive Bays	3.5"Hot-swap: 24 , lnternal 2.5": 2 ， 2.5"Hot-swap (Option): 2
PSU Form Factor	1+1 Redundant
Indicators	1 * Power Status, 2 * LAN Activity, 1 * UID Status, 1 * HDD Status, 1 Warning Status
Front Control	Power On/Off, System Reset, 2 x USB 3.0
Cooling Fans	Middle: 3 x 120 mm (T=38 mm) 6500 PWM
Expansion Slots	Length or 7 x Low Profile
HDD Backplane	24-port12Gb/s-SAS,-Expander (Option), 2-port NVME(Option), 2-port 12GB(Option)

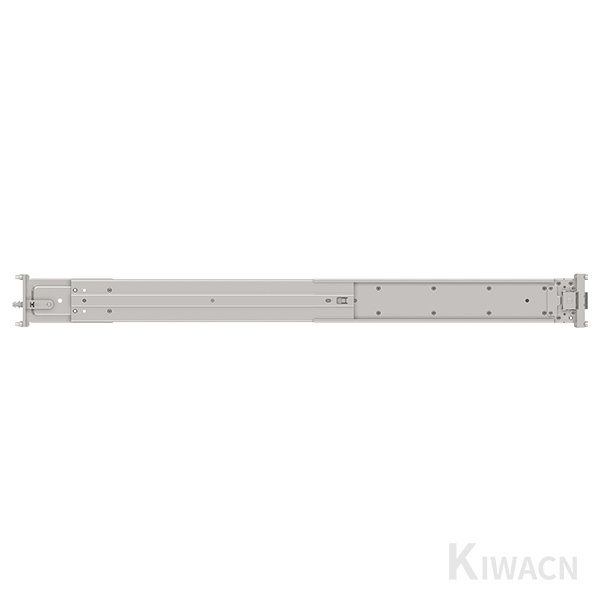

Rack Rails	P/N: 0304100007 (Option)
Net Weight	27kg
Gross Weight	30.2kg
Package Size(DWH)	830x600x280mm
